Buck Converters
Buck converters, those nifty little circuits that step down voltage, are incredibly useful in a wide array of applications. Think of your phone charger, your laptop power adapter, or even the internal power supplies inside your computer. They're all likely using buck converters to efficiently deliver the right amount of power. But, like any technology, they aren't without their drawbacks. Let's delve into the less-shiny side of these voltage-reducing champions.

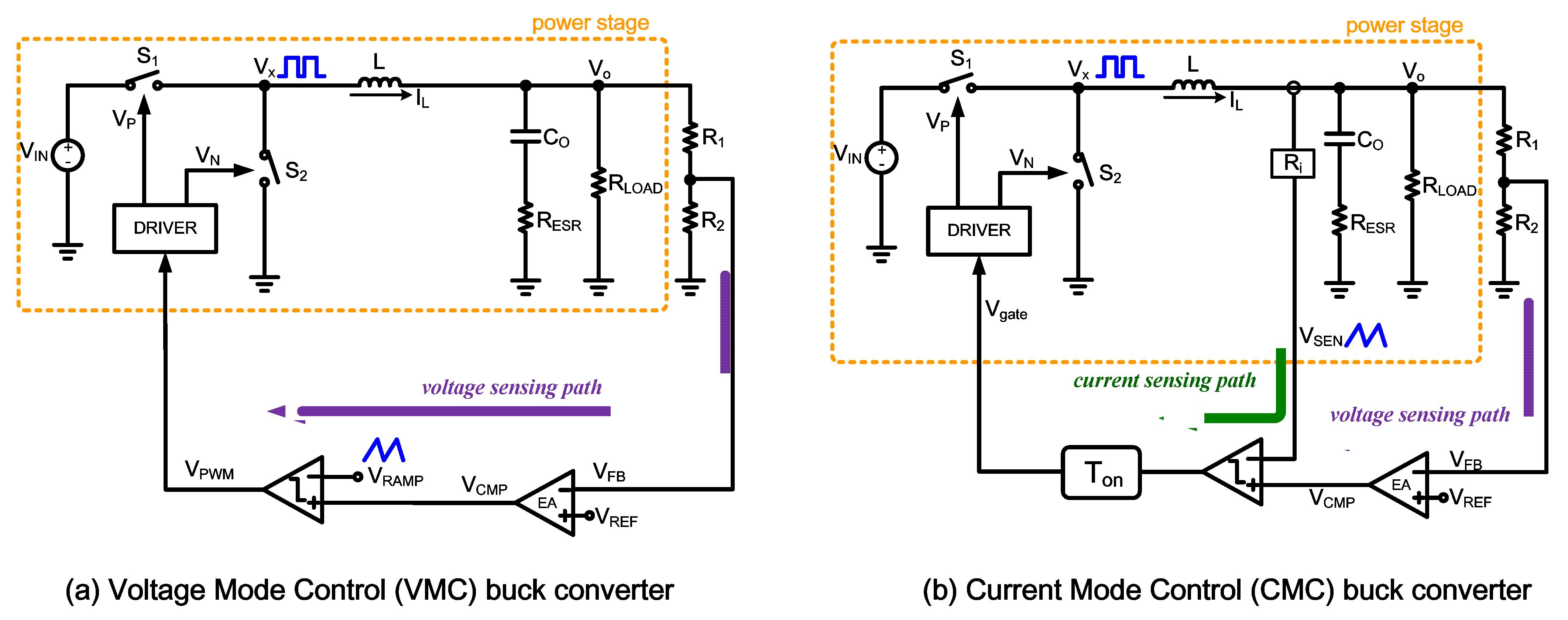

1. Ripple Effect
One significant disadvantage of buck converters is the presence of output voltage ripple. What's ripple? Imagine a perfectly smooth DC voltage as a still pond. Now, throw a pebble in that's ripple! In a buck converter, this "pebble" is caused by the switching action of the internal components (like the MOSFET and diode) and the energy storage elements (inductor and capacitor). This ripple can cause problems for sensitive electronic components that require a very stable voltage supply. Imagine trying to run a precision audio amplifier with a voltage that's constantly fluctuating; you'd likely get unwanted noise and distortion.
Minimizing ripple often requires larger or more expensive output capacitors, which can increase the overall cost and size of the buck converter. It's a bit of a balancing act; you want low ripple for optimal performance, but you also want to keep the cost and size down. Engineers spend a lot of time tweaking component values and circuit layouts to find the sweet spot.
Furthermore, the switching frequency itself contributes to the ripple. Higher switching frequencies allow for smaller inductor and capacitor values, but they also increase switching losses (we'll get to those in a bit!) and can generate more electromagnetic interference (EMI). Lower switching frequencies reduce switching losses and EMI but require larger and more expensive components. See? It's a constant juggling act!
So, while buck converters are generally efficient, the ripple voltage they produce is a factor that must be carefully considered and mitigated, especially in sensitive applications. Think of it as the fine print on a seemingly perfect deal.
2. Switching Losses
Buck converters rely on fast switching of semiconductor devices, primarily MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). These devices act like tiny, super-fast switches, rapidly turning the voltage on and off to achieve the desired voltage reduction. However, switching isn't instantaneous. During the transition from on to off (and vice versa), the MOSFET experiences a period of high voltage and high current simultaneously. This overlap leads to power dissipation, known as switching losses.
These losses manifest as heat, which reduces the overall efficiency of the converter. The higher the switching frequency, the more often these transitions occur, and the greater the switching losses. This is why, as mentioned earlier, there's a trade-off between switching frequency and efficiency. Going too high with the frequency can lead to diminishing returns in terms of size and cost savings due to the increased heat generation and the need for more robust cooling solutions (like heatsinks).
The selection of the MOSFET itself plays a critical role in minimizing switching losses. MOSFETs with lower gate charge and faster switching speeds are generally preferred, but these often come at a higher cost. Again, it's an engineering compromise. They also contribute to EMI. A MOSFET with less EMI will cost more, or reduce other functionality.
Furthermore, the dead time, the small period where both the high-side and low-side MOSFETs are off, also contributes to losses. Optimizing the dead time is vital for efficiency. Too short, and there can be shoot-through (both MOSFETs conducting simultaneously, creating a short circuit!). Too long, and the inductor current freewheels through the diode, leading to conduction losses. In short, switching losses are an unavoidable aspect of buck converter operation that must be carefully managed through component selection and circuit design.
3. Duty Cycle Dilemmas
The duty cycle of a buck converter, which is the percentage of time the switch is on, determines the output voltage. A small duty cycle means the switch is on for a short time and results in a significantly lower output voltage compared to the input voltage. A large duty cycle means the switch is on for a longer time, and the output voltage is closer to the input voltage.
Here's the rub: operating at very low or very high duty cycles can present challenges. At extremely low duty cycles (e.g., trying to step down a 24V input to a 1V output), the switch is on for a very brief period. This requires extremely fast and precise control of the switching circuitry, which can be difficult to achieve in practice. Any slight variations in the on-time can lead to significant fluctuations in the output voltage. Component selection is super critical as well.
Conversely, at very high duty cycles (e.g., trying to output a voltage very close to the input voltage), the switch is on almost constantly. This can lead to increased conduction losses in the switch, as it's conducting current for most of the time. It can also make it difficult to regulate the output voltage effectively, as there's less "room" to adjust the duty cycle to compensate for changes in input voltage or load current.
To handle extreme duty cycle scenarios, specialized buck converter topologies or advanced control schemes might be necessary. However, these solutions often come with increased complexity and cost. So, while buck converters are great for a wide range of voltage conversions, they can become less efficient or more difficult to control when dealing with extreme step-down or step-up ratios (though technically not a step-up converter!).
4. Component Stress
Buck converters subject their components, particularly the inductor, capacitor, and MOSFETs, to significant electrical stress. The inductor, for example, has to handle pulsating currents, which can lead to core losses (energy dissipated in the inductor's core material) and saturation (where the inductor's inductance drops significantly). Selecting an inductor that can handle the peak current and minimize core losses is crucial for reliability and efficiency.
The output capacitor also experiences significant stress due to the ripple current flowing through it. This ripple current can cause the capacitor to heat up, reducing its lifespan and potentially leading to failure. Choosing a capacitor with a low equivalent series resistance (ESR) is essential to minimize these losses and ensure long-term reliability. You need to choose a component that has excellent power efficiency.
The MOSFETs, as mentioned earlier, are subjected to high voltage and current stresses during switching. These stresses can lead to device degradation over time, especially if the MOSFETs are not adequately cooled. Selecting MOSFETs with sufficient voltage and current ratings, and providing adequate heatsinking, are critical for preventing premature failure.
Ignoring these component stress factors can lead to reduced efficiency, increased heat generation, and ultimately, a shorter lifespan for the buck converter. Careful component selection, proper thermal management, and robust circuit design are essential for ensuring the long-term reliability of buck converters.
5. EMI Emissions
Buck converters, due to their high-speed switching action, are inherently sources of electromagnetic interference (EMI). This EMI can interfere with the operation of other electronic devices nearby. It's like a noisy neighbor disrupting your peace and quiet, but with electronic signals instead of loud music.
The high-frequency switching currents generate electromagnetic fields that can radiate from the converter, and these fields can induce currents in nearby conductors. These induced currents can cause unwanted noise and interference in sensitive electronic circuits. Furthermore, the switching action can also generate conducted EMI, which travels along the power lines and can affect other devices connected to the same power source.
Mitigating EMI requires careful circuit layout, shielding, and filtering techniques. Shielding involves enclosing the buck converter in a conductive enclosure to block the electromagnetic fields. Filtering involves using inductors and capacitors to block the high-frequency noise from reaching other parts of the circuit or radiating into the environment. Proper grounding techniques are also essential for minimizing EMI.
Meeting regulatory EMI standards (like those set by the FCC or the European Union) can add significant cost and complexity to the design of a buck converter. However, failing to address EMI can lead to serious problems, including malfunctioning equipment and regulatory violations. So, while buck converters are useful, their potential for generating EMI must be carefully considered and addressed during the design process.
