Is Your MOSFET Acting Up? Let's Investigate!

1. MOSFETs

So, you suspect your MOSFET might be kicking the bucket? Don't sweat it! Troubleshooting electronics can feel like detective work, but with a few simple steps, you can determine if that little MOSFET is truly faulty. MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are essential components in many electronic circuits, acting like tiny switches that control the flow of electricity. When they fail, things can go haywire, leading to circuit malfunction.

MOSFET failure is not uncommon. Like any electronic component, they're susceptible to damage from overvoltage, excessive current, overheating, or even just plain old age. Identifying a faulty MOSFET early can prevent further damage to your circuit and save you a headache down the line. Think of it as catching a small leak before it floods the entire basement — much easier to deal with!

Before diving in, remember safety first! Always disconnect the power supply to your circuit before working on it. We don't want any accidental shocks turning this troubleshooting session into a shocking experience (pun intended!). Make sure you are working on a static-free surface and using proper grounding techniques to prevent electrostatic discharge (ESD) which can damage sensitive components.

The good news is, you don't need to be an electronics guru to perform basic MOSFET checks. A multimeter and a little patience are your best friends here. We'll walk through several methods, from simple visual inspections to more in-depth electrical tests. So, grab your multimeter, and let's get started!

Power Mosfet Testing At Chris Stevens Blog

Visual Inspection

2. Spotting the Obvious

Sometimes, a faulty MOSFET will show clear signs of distress. Before you even reach for your multimeter, give the component a good once-over. Look for any physical damage like cracks, burns, or bulging. These are usually tell-tale signs that something went wrong, and it's likely game over for that MOSFET. It's like seeing a car with a smashed windshield — you know something bad happened!

Pay close attention to the legs (or leads) of the MOSFET. Are they bent, broken, or corroded? Damaged leads can prevent proper connection and cause intermittent or complete failure. Also, check the surrounding components on the circuit board. If the MOSFET failed dramatically, it might have taken other components with it. Look for signs of burning or discoloration around the MOSFET and its neighbors.

A subtle smell can also be a clue. A burnt or acrid odor emanating from the circuit board might indicate a blown component, potentially including the MOSFET. Of course, rely on your eyesight more than your nose, especially if you aren't familiar with the smells of a healthy circuit board. Sniffing around too much could lead to a face full of fumes!

Even if you don't spot any obvious damage, a visual inspection is always a good starting point. It's quick, easy, and can sometimes save you a lot of time and effort. If everything looks visually okay, then it's time to move on to more detailed testing with your multimeter.

How To Find Compatible Mosfet For Laptop Motherboard In 2020

The Diode Test

3. Using Your Multimeter's Diode Mode

The diode test is a simple and effective way to get a general idea of the MOSFET's health. Most multimeters have a diode test function, usually indicated by a diode symbol. This test checks the forward voltage drop across the internal diodes within the MOSFET. We're essentially checking if the "valves" inside the MOSFET are opening and closing as they should.

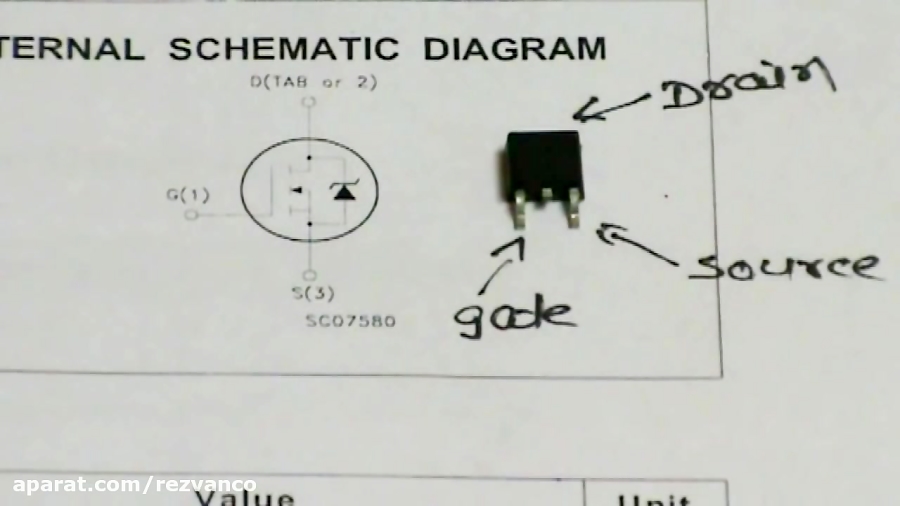

To perform the diode test, you'll need to identify the MOSFET's pins: Gate, Drain, and Source. The datasheet for your specific MOSFET model will show the pinout. Connect the multimeter's positive lead (usually red) to the Drain and the negative lead (usually black) to the Source. You should see a voltage drop reading, typically between 0.4V and 0.8V. This reading indicates the forward voltage drop of the body diode inherent to most MOSFETs.

Now, reverse the leads — positive to Source and negative to Drain. You should see little to no voltage drop (ideally, an open circuit). If you see a low voltage drop in both directions, it suggests that the body diode is shorted, indicating a faulty MOSFET. Similarly, if you see an open circuit in both directions, it suggests the diode is open, which can also point to a problem.

Next, touch the positive lead to the Gate and the negative lead to the Source. You should see a very brief voltage reading as you charge the gate capacitance. Then, reverse the leads (positive to Source, negative to Gate). Again, you should see a brief voltage reading. If you get consistent low resistance readings between any two pins, especially Gate to Source or Gate to Drain, it suggests a shorted MOSFET. Remember to compare your readings with the expected values based on the MOSFET's datasheet. Datasheets are your friends!

How To Check MOSFET With Multimeter (हिन्दी)

Resistance Checks

4. Unveiling Shorts and Opens

Another useful technique is to measure the resistance between the different pins of the MOSFET using your multimeter in resistance mode (Ohms). This helps identify any shorts or opens that might indicate a faulty component. We're looking for unexpected low or high resistance values that deviate from what you'd expect in a healthy MOSFET.

First, measure the resistance between the Gate and Source pins. You should typically see a very high resistance (several megaohms or even an open circuit). A low resistance value here indicates a shorted Gate-Source junction, which is a common failure mode. Then, measure the resistance between the Gate and Drain pins. Again, you should expect a very high resistance.

Next, measure the resistance between the Drain and Source pins. With the MOSFET unpowered and no gate voltage applied, you might see a high resistance or a somewhat lower resistance, depending on the specific MOSFET and whether the body diode is conducting. However, a very low resistance (close to zero ohms) indicates a shorted Drain-Source junction, which is another sign of a faulty MOSFET.

It's always helpful to compare your measurements with a known good MOSFET of the same type, if you have one available. This provides a baseline for comparison and helps you identify any significant deviations that might indicate a problem. Keep in mind that resistance readings can vary depending on the multimeter and the specific MOSFET model, so consult the datasheet for guidance.

Testing in Circuit

5. Troubleshooting On-Board MOSFETs

Sometimes, you can't easily remove the MOSFET from the circuit board. Maybe it's soldered directly to the board, or perhaps you don't have a replacement readily available. In these situations, you can still perform some basic tests while the MOSFET is in circuit, but it's crucial to proceed with caution and be aware of the limitations.

First, ensure the circuit is completely powered off and discharged. Use your multimeter to check for any residual voltage on the circuit board, especially across capacitors. We don't want to risk damaging your multimeter or other components. Then, perform the same resistance checks as described earlier, measuring between Gate-Source, Gate-Drain, and Drain-Source. Be aware that the readings might be influenced by other components in the circuit, so interpret them with caution.

Another technique is to measure the voltage at each of the MOSFET's pins while the circuit is powered on (if possible and safe to do so). Compare the voltages to the expected values based on the circuit schematic. If the voltages are significantly different from what they should be, it could indicate a problem with the MOSFET or with the surrounding components.

However, keep in mind that testing in-circuit can be tricky, and the readings might not be conclusive. If you suspect a faulty MOSFET but can't confirm it with in-circuit testing, the best approach is usually to remove the MOSFET and test it out of circuit. This provides a more accurate assessment of its condition. When in doubt, desoldering and testing it separately is the safest bet.

How To Check Bad Mosfet In A Dead Laptop, With Multimeter & What Types

FAQ

6. Your Burning Questions Answered

Still scratching your head? Here are some frequently asked questions to help you nail down that pesky MOSFET problem.

Q: My multimeter shows a short between all three pins of the MOSFET. Is it definitely bad?

A: Most likely, yes. A short between all three pins is a strong indicator of a catastrophic failure within the MOSFET. It's probably time to order a replacement.

Q: Can a MOSFET fail intermittently? Sometimes it works, sometimes it doesn't.

A: Absolutely! Intermittent failures can be the most frustrating to diagnose. It could be due to a hairline crack, a loose connection, or thermal stress. Try applying some gentle pressure to the MOSFET while monitoring the circuit. If it starts working when you press on it, it's likely a connection issue. Heat is also a factor. Use a heat gun (carefully!) to gently warm the MOSFET and see if it fails. Be very careful not to overheat it!

Q: I don't have a datasheet for my MOSFET. How do I find the pinout?

A: The easiest way is to search online using the MOSFET's part number. Sites like AllDataSheet or Octopart are great resources for finding datasheets and other information. If you can't find the exact datasheet, try searching for similar MOSFETs with the same package type (e.g., TO-220) and compare their pinouts. However, exercise caution and verify the pinout before connecting the MOSFET to your circuit.

Q: I replaced the MOSFET, but the circuit still doesn't work. What's next?

A: Don't despair! It's possible that the original MOSFET failure damaged other components in the circuit. Check the resistors, capacitors, and diodes in the vicinity of the MOSFET. Also, inspect the gate driver circuit, which provides the signal to turn the MOSFET on and off. A faulty gate driver can prevent the MOSFET from working properly, even if the MOSFET itself is good.
