Calculating Current in a Parallel Circuit
2. Unlocking the Secrets of Current Calculation
Ready to get your hands dirty with some calculations? Don't worry, it's not as scary as it sounds. The key to understanding current in a parallel circuit lies in Ohm's Law, which states that Voltage (V) = Current (I) Resistance (R). We can rearrange this to find the current: Current (I) = Voltage (V) / Resistance (R).
Since the voltage is the same across all branches in a parallel circuit, we can use Ohm's Law to calculate the current in each individual branch. Let's say you have a parallel circuit with two resistors: R1 = 10 ohms and R2 = 20 ohms, and the voltage source is 12 volts. The current through R1 would be I1 = 12V / 10 ohms = 1.2 amps. And the current through R2 would be I2 = 12V / 20 ohms = 0.6 amps.

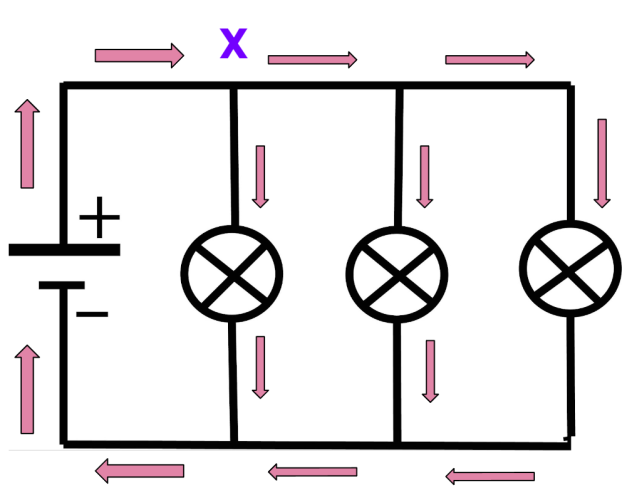

But what about the total current flowing into the circuit from the power source? That's where things get even easier! In a parallel circuit, the total current is simply the sum of the currents in each branch. So, in our example, the total current (Itotal) would be I1 + I2 = 1.2 amps + 0.6 amps = 1.8 amps. See? Not so tough!
In a nutshell, calculate the current in each branch using Ohm's Law (I = V/R), and then add up all those individual currents to find the total current entering the parallel circuit. Remember, the voltage across each branch is constant. Keep this in mind and you will be golden.
Finding Total Resistance in a Parallel Circuit: The Reciprocal Route
3. Why Total Resistance Matters
Okay, so we know how to calculate the current in each branch and the total current. But what if we want to know the total resistance of the entire parallel circuit? This can be useful for things like calculating the power consumed by the circuit or designing the circuit from scratch. The funny thing is, in a parallel circuit, adding more pathways actually decreases the overall resistance. It's like adding more lanes to our highway — traffic flows more easily!
Calculating the total resistance of a parallel circuit is a little different than in a series circuit. Instead of simply adding up the resistances, we need to use a reciprocal formula. The formula looks like this: 1/Rtotal = 1/R1 + 1/R2 + 1/R3 + ... and so on for however many resistors you have in parallel. Don't panic; let's break it down!
Let's go back to our example with R1 = 10 ohms and R2 = 20 ohms. Using the formula, we get 1/Rtotal = 1/10 + 1/20 = 0.1 + 0.05 = 0.15. Now, to find Rtotal, we need to take the reciprocal of 0.15, which is Rtotal = 1 / 0.15 = approximately 6.67 ohms. Notice that the total resistance (6.67 ohms) is less* than the smallest individual resistance (10 ohms). That's the key characteristic of parallel circuits!
In plain speak, add the reciprocals of all the resistors. Once you have that total sum, use that sum and make it one over that figure, and voila, total resistance. Make sure that you are not scared of fractions! You will encounter these when you start to get your hands dirty.
