What's The Difference Between A MOSFET And JFET?

Decoding the Transistor Tango

So, you're diving into the world of transistors, eh? Welcome! It's a fascinating place where tiny switches control big things. Today, we're pitting two popular types against each other: the MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) and the JFET (Junction Field-Effect Transistor). The big question: why is the MOSFET, a type of transistor that's used in most modern electronic devices, often considered the champion?

1. MOSFET Mastery

Let's face it, when it comes to designing electronic circuits, efficiency is king (or queen!). MOSFETs, thanks to their insulated gate design, are generally more energy-efficient. Think of the gate as a doorman that controls the flow of electrons. With a MOSFET, that doorman is insulated, meaning it doesn't require as much current to operate. This results in less power consumption and cooler running temperatures, which is a big win for battery life and overall system reliability. Less heat also means you can pack more transistors into a smaller space, leading to those amazingly powerful smartphones we all carry around.

JFETs, on the other hand, have a direct electrical connection to their gate. This direct connection means that a small current is always flowing into the gate, leading to more power loss compared to a MOSFET. Imagine it like a leaky faucet — even when "off," it's still dripping, wasting valuable resources. That "drip" adds up over time!

Another area where MOSFETs shine is their ability to be scaled down to incredibly small sizes. This miniaturization is crucial for creating the high-density integrated circuits that power modern electronics. Because MOSFETs can be manufactured smaller and packed closer together, they allow for greater computational power in a smaller footprint. Think of it like fitting more books on a shelf - you can get more information in the same space.

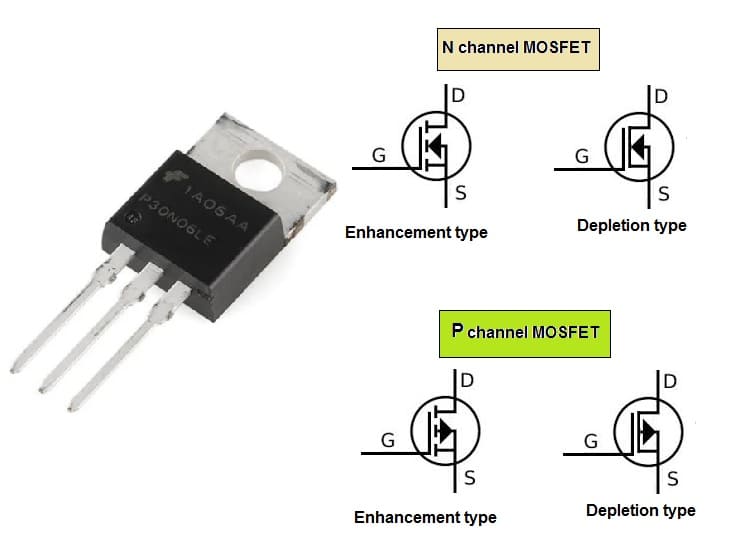

Finally, MOSFETs are available in two flavors: enhancement mode and depletion mode. Enhancement mode MOSFETs are normally 'off' and require a voltage to turn 'on', providing greater design flexibility. Depletion mode MOSFETs are normally 'on' and require a voltage to turn 'off'. This versatility makes MOSFETs a great choice for a wider range of applications. JFETs, while also useful, don't offer quite the same level of flexibility, they are only available as depletion mode. Imagine choosing an outfit for the day - MOSFETs offer a larger wardrobe and greater selection!

What Is The Difference Between JFET And MOSFET?🥕 Entre No Pin Up Casino

Input Impedance

2. High Impedance Highway

Imagine trying to push a boulder up a hill. That hill represents impedance. A high impedance means it's hard to get current flowing. MOSFETs have a spectacularly high input impedance, thanks again to that insulated gate. This means that the control signal applied to the gate barely draws any current. It's like having a super-efficient remote control for a giant machine; you can control a lot of power with very little effort.

This high input impedance is incredibly useful because it means that the MOSFET won't "load down" the circuit that's driving it. Loading down means that the transistor draws too much current from the source, causing the source voltage to drop. A transistor that does not load down the source allows for more accurate and stable circuits. Consider it like listening to the radio - you want to hear the broadcast, not cause the station to go off the air by using a bad antenna.

JFETs, while having a good input impedance, don't quite reach the heights of MOSFETs. They still draw a small amount of current, which can sometimes be a problem in sensitive circuits. It's like having a dimmer switch that always uses a little power, even when the lights are off.

In short, the high input impedance of MOSFETs makes them ideal for applications where you need to control a large amount of power with a minimal control signal. This is especially important in things like audio amplifiers and digital circuits.

Diferencia Entre Bjt Y Mosfet Con Tabla Mira La Difer Vrogue.co

Switching Speed

3. The Need for Speed

In the fast-paced world of electronics, switching speed is crucial. This refers to how quickly a transistor can turn on and off. MOSFETs generally boast faster switching speeds than JFETs. This is because the insulated gate requires less charge to switch states. Imagine trying to flip a light switch, it is easier to flip a light switch than to spin a large flywheel to control the light, MOSFETs are like the light switch and JFETs are like the flywheel.

Faster switching speeds are essential for applications like microprocessors and high-frequency amplifiers, where signals need to be processed rapidly. Every nanosecond counts! A faster transistor allows for more operations per second and better performance overall. Consider the difference between reading a book and trying to watch a movie with constant lag - faster processing is always better.

While JFETs are capable, their switching speed is typically limited by the capacitance of the junction between the gate and the channel. This capacitance slows down the charging and discharging process, resulting in slower switching speeds. Imagine trying to fill a bucket with a small hole - it will take longer to fill than a bucket without any holes.

Essentially, the faster switching speed of MOSFETs makes them the go-to choice for digital circuits, where speed is paramount. They're the sprinters of the transistor world, leaving the JFETs in the dust when it comes to rapid-fire switching.

Jfet Vs Bjt Amplifier At Robert Sites Blog

Manufacturing Magic

4. Scaling Up

When it comes to manufacturing, MOSFETs have a distinct advantage. Their fabrication process is generally simpler and more scalable than that of JFETs. This means that MOSFETs can be produced in larger quantities at lower costs. This is important because it allows electronic devices to be more affordable.

The planar structure of MOSFETs lends itself well to the advanced manufacturing techniques used in modern semiconductor foundries. This allows for higher density and smaller feature sizes, resulting in more transistors on a single chip. Think of it like building a skyscraper - using modern techniques allows for taller buildings and more offices in a smaller area.

JFETs, on the other hand, have a more complex structure that makes them more challenging to manufacture. This can lead to higher production costs and lower yields. The challenges in manufacturing can make JFETs expensive, which is important to consider when designing a circuit.

In essence, the manufacturing advantages of MOSFETs have made them the dominant transistor in modern electronics. Their lower cost and higher density have paved the way for the incredible advancements we've seen in computing and communications. They're the unsung heroes of the digital revolution.

Perbedaan MOSFET Vs. JFET, Dan Aplikasinya Dalam Elektronika

The Downsides (Because Nothing is Perfect)

5. Even Superheroes Have Weaknesses

Okay, so MOSFETs sound amazing, right? And for most applications, they truly are. But let's be real, nothing is perfect. One potential drawback of MOSFETs is their susceptibility to damage from electrostatic discharge (ESD). That little zap you sometimes feel when touching a doorknob can fry a MOSFET if you're not careful. The insulated gate, while great for efficiency, is also vulnerable to high voltages. Imagine a paper-thin shield against a lightning strike - it will not hold up!

JFETs tend to be a bit more robust in this regard. Their junction structure offers some inherent protection against ESD. However, even JFETs can be damaged by ESD, so it's always good practice to handle electronic components with care. Just like any delicate instrument, be careful when you use it!

Also, at extremely high frequencies, the performance of MOSFETs can be affected by parasitic capacitances. These are unwanted capacitances that exist within the transistor structure. These parasitic capacitances can limit the bandwidth and gain of the circuit. While JFETs also have parasitic capacitances, they can be less pronounced in some applications. It's like trying to run a race with weights on your ankles — it's doable, but it slows you down!

Despite these minor drawbacks, the advantages of MOSFETs generally outweigh the disadvantages, making them the preferred choice for most applications. It is important to be aware of these potential issues and take appropriate measures to mitigate them. Just remember, always use proper ESD protection when handling MOSFETs, and consider the potential impact of parasitic capacitances in high-frequency circuits.

BJT Vs MOSFET IGBT Transistors Difference Comparison

FAQ

6. Your Transistor Troubles Resolved

Still scratching your head? Let's tackle some common questions.

Q: Are JFETs completely obsolete?
A: Not at all! While MOSFETs dominate many applications, JFETs still have their place, especially in niche areas where their unique characteristics (like lower noise in some audio applications) are advantageous. Some audiophiles prefer JFETs for certain amplifier stages because of their specific sound characteristics. Just like vinyl records, they still have their fans!

Q: Which is easier to design with?
A: Generally, MOSFETs offer more design flexibility due to their availability in both enhancement and depletion modes. JFETs are usually depletion mode only, which can limit your design options. However, both require careful consideration of their characteristics to ensure proper circuit operation. It's like choosing between a manual and an automatic car — both will get you there, but one offers more control (and potentially more complexity).

Q: Which is better for analog circuits?
A: It depends on the specific application. MOSFETs are widely used in analog circuits, but JFETs can be preferred in some low-noise amplifier applications. The "better" choice depends on the specific requirements of the circuit, such as gain, bandwidth, and noise performance. So, it's a case-by-case decision, much like choosing the right tool for a job!
